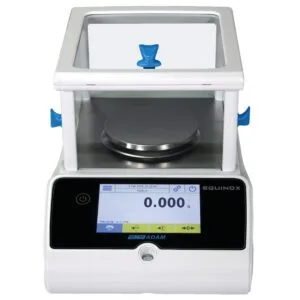

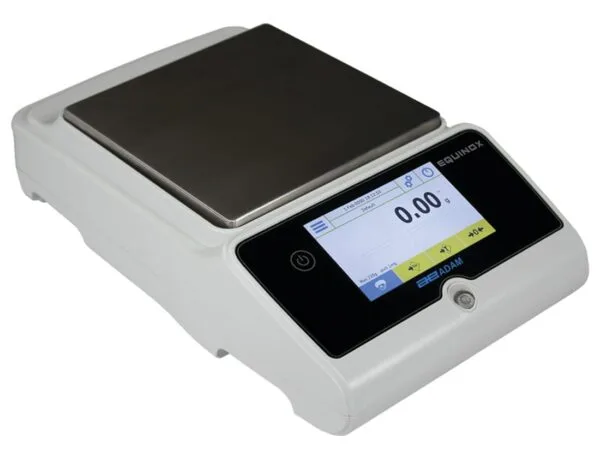

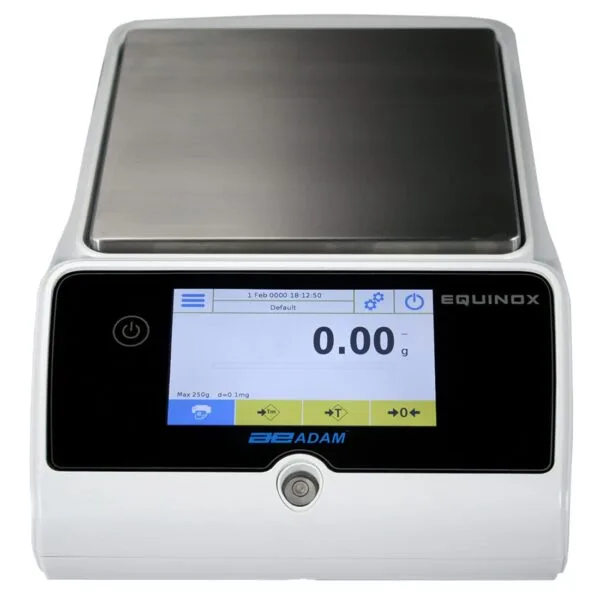

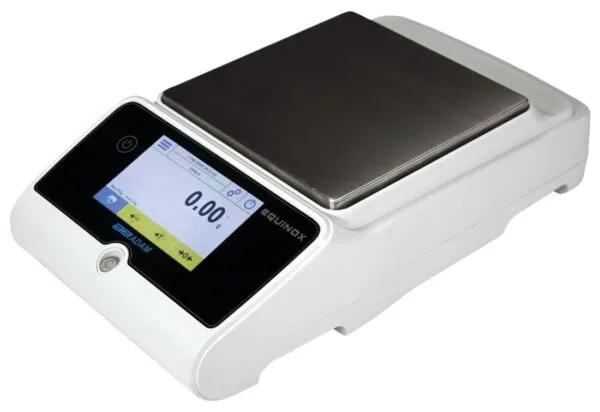

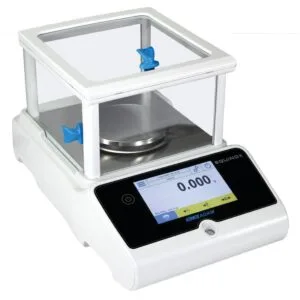

Equinox Precision Balances-ETB 3202i
Equinox precision balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. Twelve precision models offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g. A colour touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.
Features and Benefits
- Large, responsive 5’’ 800×480 pixel touch-screen display
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Large, grade 304 stainless steel pan allows easy cleaning
- RS-232 interface provides speedy connection to computers and printers
- USB host for memory card
- AC adapter included
- Built-in memory for storing products and settings
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Security password control prevents unauthorised access
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Preset tare function speeds the process of repetitive weighing
- Parts counting with freely selectable sample sizes
- Multilingual display allows use in many different countries
- Memory accumulation totals results
- Checkweighing with audible alarm
- Security slot for optional lock and cable to help prevent theft
- A 5-year warranty means quality assured for years of use.
Technical specification
Model : ETB 3202i
UPC: 840886104757
Metrology
-
Capacity
- 3200g
-
Readability
- 0.01g
-
Repeatability
- 0.005g
-
Linearity
- 0.02g
-
Minimum Weight USP
- 20g
General Specifications
-
Pan Size
- 185x185mm
-
Weighing Units
- ct, custom unit, dwt, g, GN, lb, mm, oz, ozt, T, tl.H, tl.S, tl.T
-
Interface
- RS-232/USB
-
Calibration
- Internal automatic calibration
-
Display
- Touchscreen with 13mm high digits
Power
-
Power Supply
- 9VDC 1A adapter
Operating Conditions
-
Operating Temperature
- 10° to 30°C / 50° to 86°F
Product Information
-
Construction
- ABS plastic
-
Net Weight
- 6.8kg
Dimensions
-
Overall Dimensions
- 224x374x95mm
